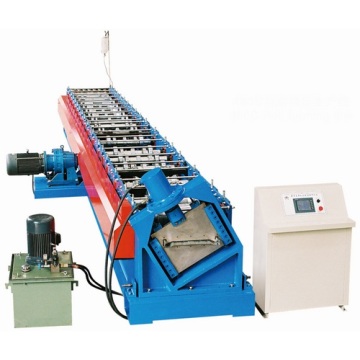

TF480 Anode Plate Roll Forming Machine

Payment Type:
L/C,T/T
Incoterm:
FOB,CIF
Min. Order:
1
Transportation:
Ocean,Land
Share:
  • Product Description
Overview
Supply Ability & Additional Information

TransportationOcean,Land

Payment TypeL/C,T/T

IncotermFOB,CIF


Equipment overview:

1.Double cantilever gear drives, the producing width of machine is adjust continually, it is possible to change the width and height.

2. Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.

3. The Roll Forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.

 Technical parameters:

Anode Plate Roll Forming Machine




Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type



SPCC





strength

MPa

≤350



Thickness

mm

1.2~1.5



Coil internal diameter

mm

500,600



Coil weight

T

5



2

Specification

mm

100-320



3

Line speed

m/min

10



4

Roller material



D2 quenching treatment



5

Roller driven type



External chain  transmission



6

Operating system



Windows2000



7

Total motor power

Kw

About 15



8

Electric control system



PLC automatic control system



9

 Dimension(L*W*H)

m






Anode Plate Roll Former

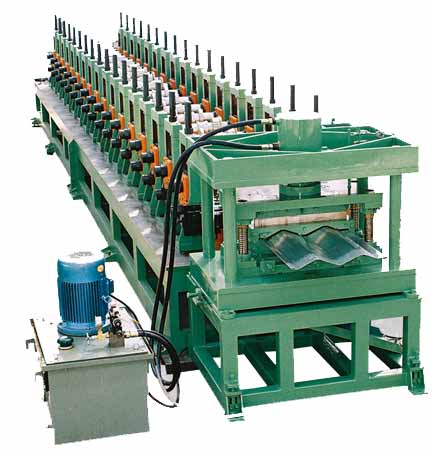

Anode Plate Roll Form Line
