Stainless Metro rail automatic roll forming line

Payment Type:
L/C,T/T
Incoterm:
FOB,CIF
Min. Order:
1
Transportation:
Ocean,Land
Share:
  • Product Description
Overview
Supply Ability & Additional Information

TransportationOcean,Land

Payment TypeL/C,T/T

IncotermFOB,CIF

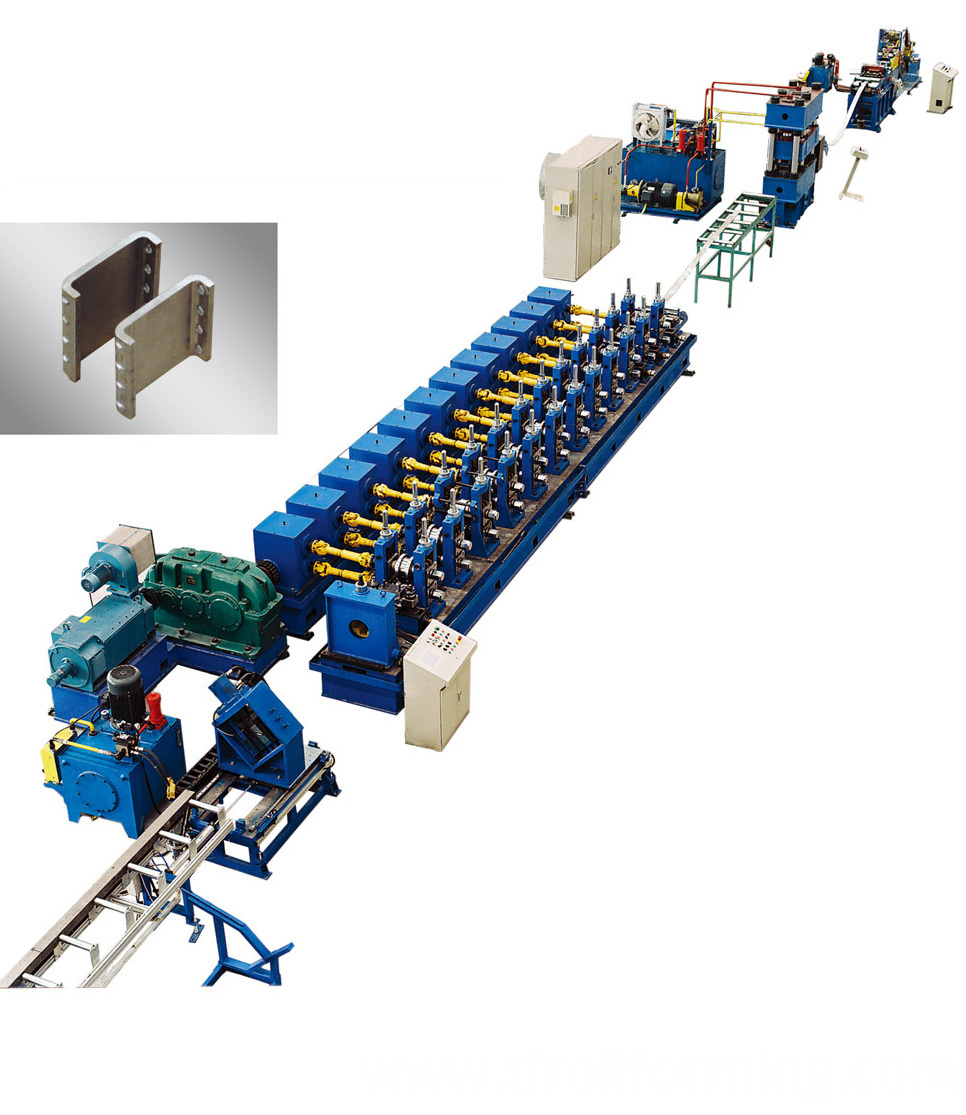

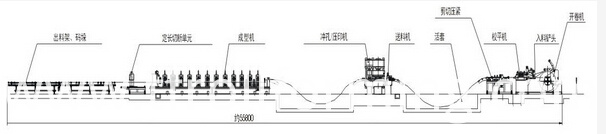

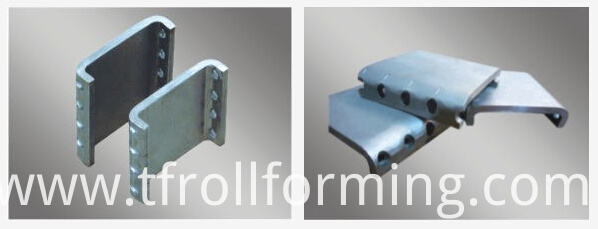

 TF Stainless Metro rail automatic Roll Forming Line, this line consists of un-coiler, feeding guider, leveler, cutting head machine (butt welding ), feeder, puncher, presser, Roll Forming Machine, shaped cutter, discharging rack, hydraulic and electric control system.Production raw material: stainless steel (X6Cr17), panel thickness: 6mm, feeding width: 508mm. final products length: 18.2m. Line speed: 3-6m/min.

saitong


Serial number Item Unit Parameters Remark



1






Suitable material













Type



Stainless Steel



strength

MPa

(X6Cr17)Rm=450Mpa Rpo≥280Mpa



Thickness

mm

6mm



Coil internal diameter

mm

 98±0.2mm



Coil weight

T





2

Specification

mm





3

Line speed

m/min

3~6



4

Roller material







5

Roller driven type







6

Operating system







7

Total motor power

Kw

 About 160KW



8

Electric control system



PLC automatic control system



9

Dimension(L*W*H)

Mm
