Cable Tray Forming Machine

Product Description

Description

Cable Tray Roll Forming Machine consists of decoiler (uncoiler), leveling machine (flattener), servo feeding device, punching system, front cutting device, guiding device, Roll Former, rear straightening device and run-out table. With full and special experience, we can customize cable tray Roll Forming machines or cable tray roll forming production lines according to customers` profile drawings and specifications.Cable trays are used as an alternative to open wiring or electrical conduit systems which are commonly used for cable management in commercial & industrial construction. We are cable tray Roll Forming Machine manufacture, we produce various of products such as type cable tray, mesh cable tray and ladder cable tray as your requirements. They are especially useful in situations where changes to a wiring system are anticipated.

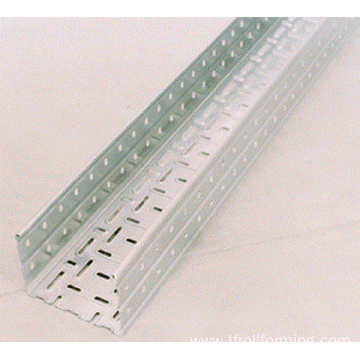

Our cable tray Forming Machine makes the cable tray system is used to support insulated electric cables used for power distribution and communication in the electrical wiring of buildings. The raw materials for cable tray are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic in generally. The material for a given application is chosen based on the corrosion resistance required for the location.
Our cable tray forming machine can make the different shape of the cable trays as customer's requests.
The cable tray forming machine is driven by double cantilever gears, the width can be adjust continuously, the width can be changed fast.

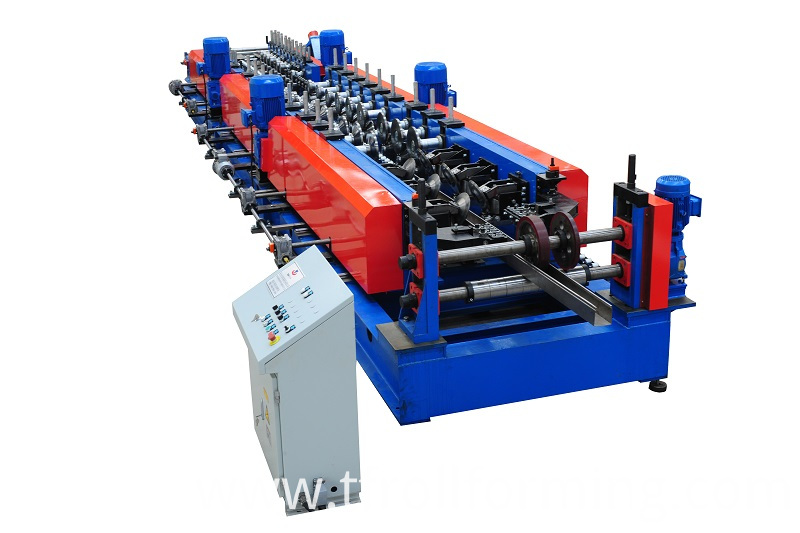

Cable Tray Forming Machine




Technical parameters:


Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type

CR,HR Sheet;Galvanized Sheet

strength

MPa

≤350

Thickness

mm

1.6-3.2

Coil internal diameter

mm

500,600

Coil weight

T

5

2

Specification

mm

100-320

3

Line speed

m/min

25

4

Roller material

D2 quenching treatment

5

Roller driven type

External chain transmission

6

Operating system

Windows2000

7

Total motor power

Kw

About 65

8

Electric control system

PLC automatic control system

9

Dimension(L*W*H)

m

30X2X1.7

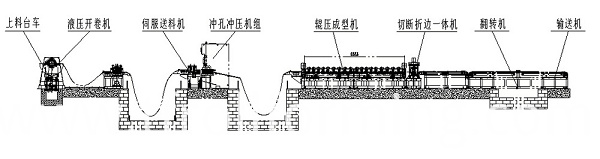

Cable Tray Roll Forming Equipment


Uncoiling –leveling- Looping-Feeding-punching -Roll forming-Cutting –Discharging

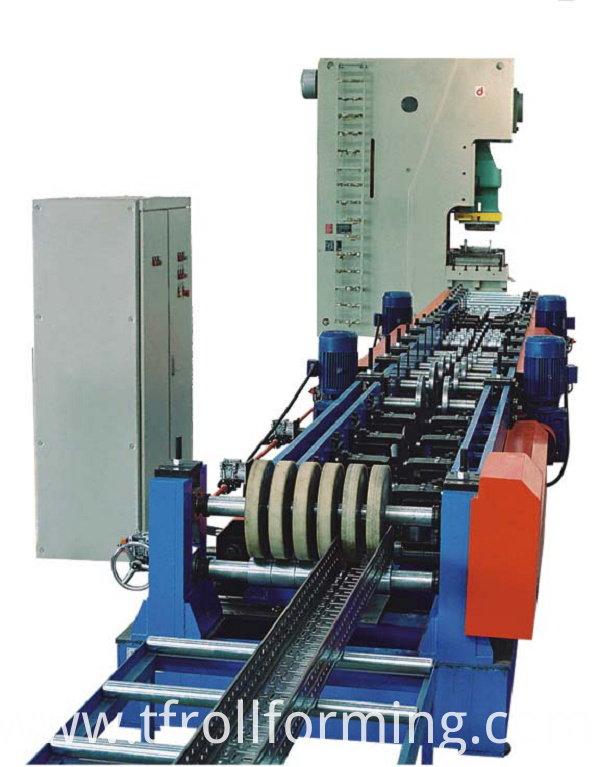

Automatic Cable Tray Roll Forming Machine


Looking for ideal Automatic Cable Tray Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cable Tray Roll Former Line are quality guaranteed. We are China Origin Factory of Cable Tray Roll Forming Equipment. If you have any question, please feel free to contact us.

Product Categories : Electric Industry Roll Forming Line > Cable Tray Roll Forming Line
