Digital Control Punch and Roll Forming Machines

Payment Type:
L/C,T/T
Incoterm:
CIF
Min. Order:
1
Transportation:
Ocean
Share:
  • Product Description
Overview
Supply Ability & Additional Information

TransportationOcean

Payment TypeL/C,T/T

IncotermCIF

Description:

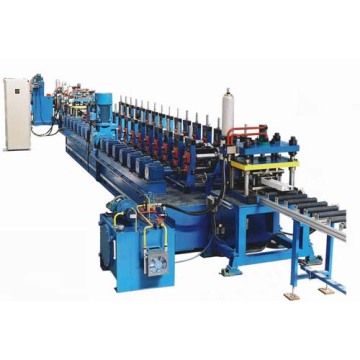

Lampshade Roll Forming Machine

The production line is highly integrated by uncoiling .leveling.forming .cutting off.punching.receiving and related process.The whole production line is controlled by PCL program . Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control .manual control.separate operation and emergency stop


Technical parameters:

Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type



colour-coated steel plates







strength

MPa

235







Thickness

mm

3.0mm







Coil internal diameter

mm

350







Coil weight

T

3



2

Specification

mm

Φ380~Φ530mm



3

Line speed

m/min

15



4

Roller material



GCr12



5

Roller driven type



External chain  transmission



6

Operating system



Windows2000



7

Total motor power

Kw

5.5



8

Electric control system



PLC automatic control system



9

 Dimension(L*W*H)

m

15670*1644*1481



  20081017134523641

2008912101331135 200891210726247

200891210742930


Why choose Linear Cable Tray Roll Forming Machine?
1. In the design of punching part, we adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm.

1. Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.

3. The Roll Forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.
