CE Standard Glazed Tile Roll Forming Line
  • CE Standard Glazed Tile Roll Forming Line

CE Standard Glazed Tile Roll Forming Line

Product Description

TF Glazed Tile Roll Forming Line,


hot sale full automatic Glazed Tile Forming Machine making construction roof sheet

MATERIAL:
(1) Coil Width: 1000 mm~1250mm
(2) Suitable Coil Thickness: 0.3mm - 0.6mm
(3) Suitable Raw Materials: Pre-painted Coil;
(4) Yield bearing stress: 235MPa


MACHINE COMPONENTS:
(1) Hydraulic Un-coiler: 1 set
(2) Roll-Forming M/C: 1 set
(3) Hydraulic Pressing Die/Cutting M/C: 1 set
(4) PLC Control System: 1 set
(5) Product Rack (un-powered): 1 set

Specification:

Main Technicial Parameter:

1

Inner diameter of manual decoiler

500mm

2

Outer diameter of manual decoiler

1200mm

3

Weight capacity of manual decoiler

5T

4

Appearance Size

8500mm*1550mm*1300mm

5

Raw Material

colored steel or galvanized steel

6

Roller material

high grade 45# forged steel,polished,heated,quenched

7

Blade Material

CR12 with polished

8

Chrome Coating

coated with 0.05mm hard chrome

9

Control System

PLC control

11

Hydraulic Power

7.5 KW

12

Roller station

13 rollers

13

Material of chain

high grade 45# steel:polished,heated,quenched HRC 45-50

14

Speed of Product

0-12m/min

15

Thickness range

0.2-0.8mm

16

Type of cutting

hydraulic cutting

17

Coil Width

1250mm

18

Cover Width

1100mm

19

Material of rack

complete welded structure of A3 steel plate

20

Machine frame stand

welded with 300H-steel

21

Type of Forming Machine

single station with chain transmission

22

Thickness of side-wall

16mm

23

Shaft Diameter

75mm

24

Weight

about 4 T

25

Voltage

380V 50HZ 3Phases( or as your local requirement)

26

Electrical control

PLC frequency control system




2008109165238

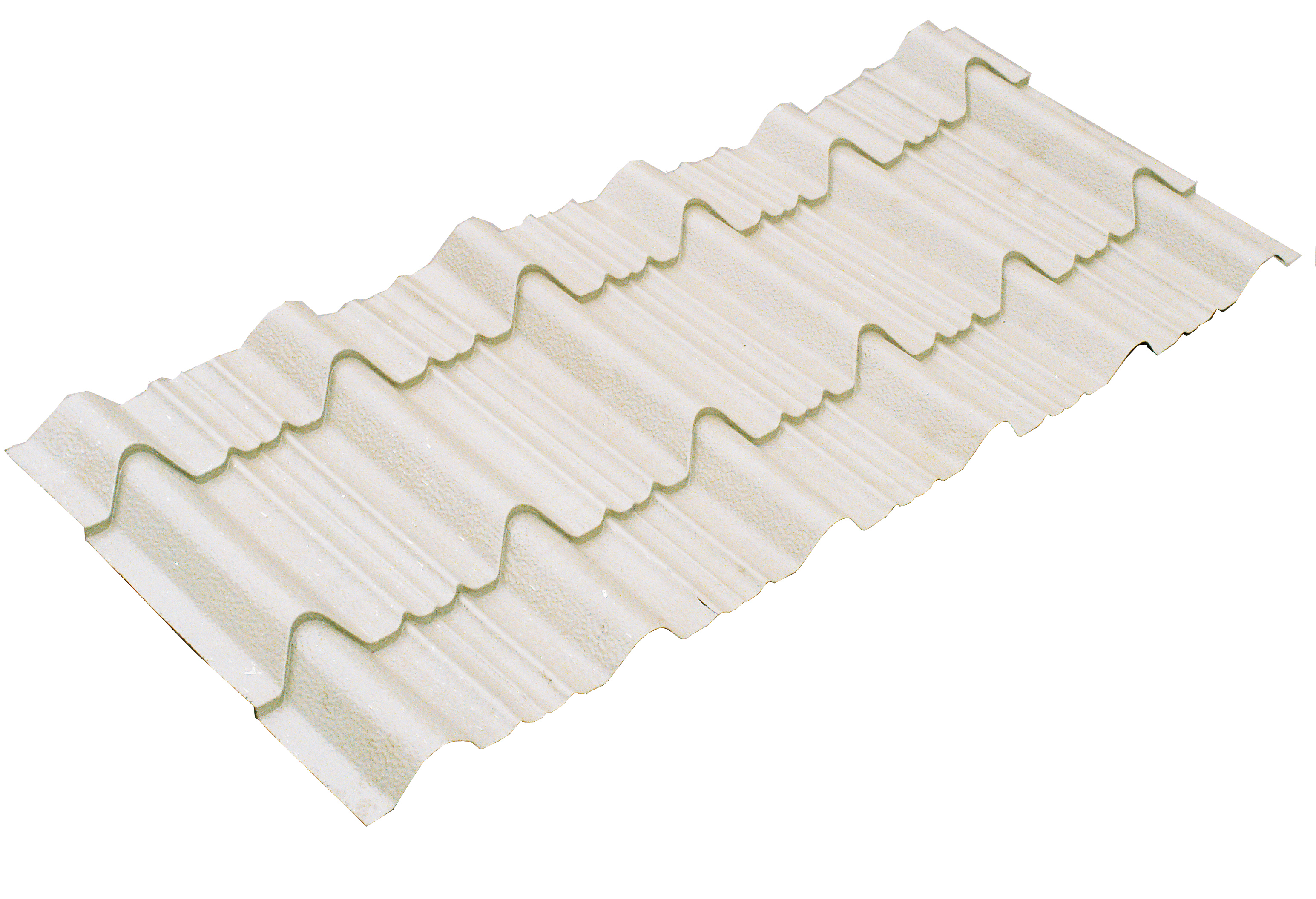

CE Standard Glazed Tile Equipment




Looking for ideal CE Standard Glazed Tile Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Glazed Tile Roll Forming Line are quality guaranteed. We are China Origin Factory of CE Standard Glazed Tile Equipment. If you have any question, please feel free to contact us.
