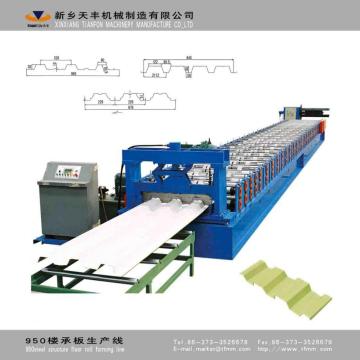

TF Steel Structure Floor Roll Forming Machine

Min. Order:
1
Share:
  • Product Description
Overview

TF deck/ roof panel NC high speed production line, whose production speed can reach 40m/min (includes cutting), multiple profiles can be produced through quick change cassette. PLC central control whole line, includes loading, uncoiler, pre-cutter, Roll Forming, servo flying cutter, stacker, discharging. HIM operateing, the whole line just needs one operator, many groups data can be set by one time, automatic producing, allocated with remote control, safety light curtain etc whole security systems, which is approved by CE. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.

TF Steel Structure Floor Roll Forming Machine

1.This kind of Cold Roll Forming Machine is widely used for making various deck/ roof pane  for steel constructions, steel structure projects and containment systems etc.

 2. This production line consists of feeding unit, uncoiler, feeding guide, Roll Forming Machine, cutter, automatic stacker, hydraulic system and electric control system.

3. The line speed of this panel Forming Machine is 40m/min.


Steel Floor Machine


Steel Floor Roll Former


Product Categories : Steel Structure Roll Forming Line > Wall Panel Roll Forming Line
