IBR Roof Panel Roll Forming Machine
IBR Roof Panel Roll Forming Machine
  • IBR Roof Panel Roll Forming Machine
  • IBR Roof Panel Roll Forming Machine

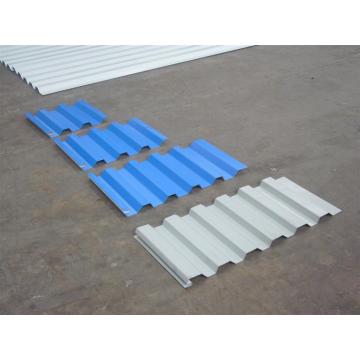

IBR Roof Panel Roll Forming Machine

Product Description

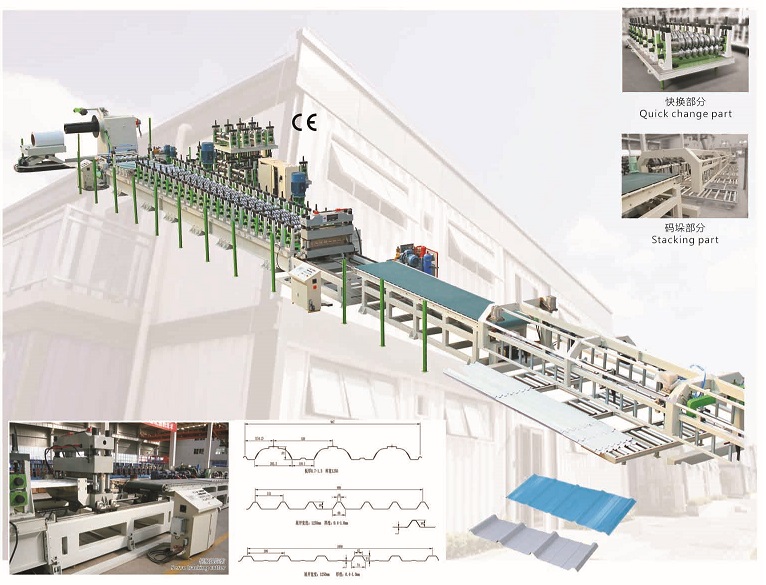

IBR Roof Panel Roll Forming Machine

Roll-Forming M/C:
The Roll Forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.
About -13 steps to form; Material of Roller: 45# steel, Chroming and polishing on the surface.
The machine base adopts welded steel plate structure; Chain and gear move the line, motor drives.

Xinxiang Tianfeng Machinery Manufacture Co.ltd. is a leading manufacturer for steel plate coiling machinery,Tianfeng has advanced producion equipment. Engineering personnel and echnicians of Tianfeng are rich in experience of designing, developing, and manufacturing of machineries.They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high fiexiblity and low production cost.

MATERIAL:
(1) Coil Width: 1000 mm~1250mm
(2) Suitable Coil Thickness: 0.3mm - 0.6mm
(3) Suitable Raw Materials: Pre-painted Coil;
(4) Yield bearing stress: 235MPa

MACHINE COMPONENTS:
(1) Hydraulic Un-coiler: 1 set
(2) Roll-Forming M/C: 1 set
(3) Hydraulic Pressing Die/Cutting M/C: 1 set
(4) PLC Control System: 1 set
(5) Product Rack (un-powered): 1 set



IBR Roof Panel Roll Forming Machine


IBR Roof Panel Roll Former

IBR Roof Panel Roll Forming Line

Looking for ideal IBR Roof Panel Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the IBR Roof Panel Roll Forming Line are quality guaranteed. We are China Origin Factory of IBR Roof Panel Roll Forming Equipment. If you have any question, please feel free to contact us.

Product Categories : Steel Structure Roll Forming Line > Roof Panel Roll Forming Line
