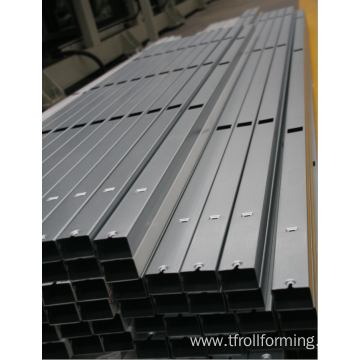

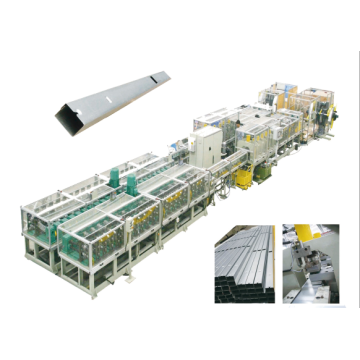

Long Life Span Bus Bar Roll Forming Line
Long Life Span Bus Bar Roll Forming Line
Long Life Span Bus Bar Roll Forming Line
  • Long Life Span Bus Bar Roll Forming Line
  • Long Life Span Bus Bar Roll Forming Line
  • Long Life Span Bus Bar Roll Forming Line

Long Life Span Bus Bar Roll Forming Line

Product Description

Equipment overview:

The rollers´ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures

stability of the machine. All the bearings on the top & bottom shafts are lubricated.

Module torii is installed on NMT, adjust the distance through rotation leader screw.

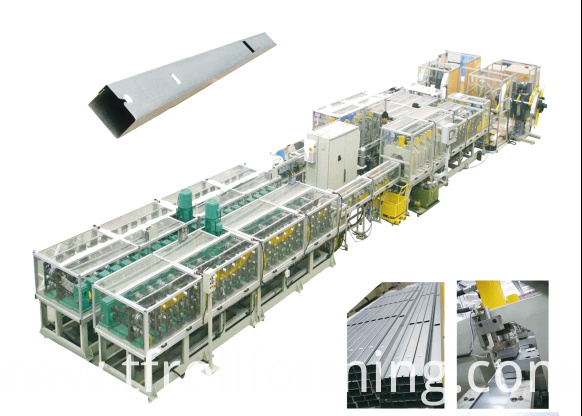

Bus Bar Housing Roll Forming Machine

Roll Forming Machine


coil loading→ data set →machine start→uncoiling→leveling→

pre-Roll Forming→ selective punching →cutting →convey →roll forming to bite seaming productProducts discharging .


Technical parameters:

Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type

galvanized coil

strength

MPa

≤235MPa

Thickness

mm

0.5mm

Coil internal diameter

mm

500mm

Coil weight

T

3

2

Specification

mm

165

3

Line speed

m/min

35

4

Roller material

D2 quenching treatment

5

Roller driven type

External chain transmission

6

Operating system

Windows2000

7

Total motor power

Kw

About11

8

Electric control system

PLC automatic control system

9

Dimension(L*W*H)

m





Looking for ideal Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Housing Roll Forming Machine are quality guaranteed. We are China Origin Factory of Housing Roll Forming Line. If you have any question, please feel free to contact us.

Product Categories : Electric Industry Roll Forming Line > Busbar Roll Forming Line
