The Elevator Guide Rail Roll Former

Payment Type:
L/C,T/T
Incoterm:
CIF
Min. Order:
1
Transportation:
Ocean
Share:
  • Product Description
Overview
Supply Ability & Additional Information

TransportationOcean

Payment TypeL/C,T/T

IncotermCIF

Description:The Elevator guide rail Roll Forming Machine

The Elevator Guide Rail Roll Former  includes decoiler, feeding device, main roll Forming Machine, saw cutting, automatic stacker and PLC control system.The finished products are widely used in elevator, etc.
The line speed is about 12 m/min, This new type producing line has advantages like high precision, high processing speed. Its processing speed can be times of traditional one.
Flow chart
Coil loading ---- hydraulic decoiling ---- leveling and feeding ---- Roll Forming ---- cutting ---- run out



 loading car, uncoiler, feeding guice, punch, cutting, main machine, roll forming cutter, automatic stacker, hydraulic system and electric control system. line

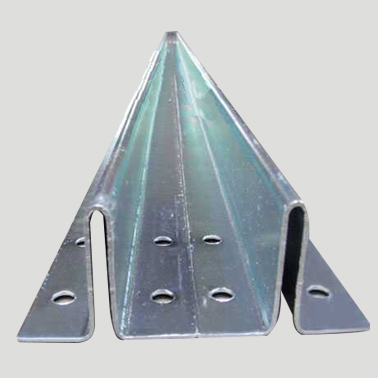

Elevator Guide Rail Roll Form Line

Technical parameters:

Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type



colour-coated steel plates







strength

MPa

235







Thickness

mm

3.0mm







Coil internal diameter

mm

350







Coil weight

T

3



2

Specification

mm

Φ380~Φ530mm



3

Line speed

m/min

15



4

Roller material



GCr12



5

Roller driven type



External chain  transmission



6

Operating system



Windows2000



7

Total motor power

Kw

5.5



8

Electric control system



PLC automatic control system



9

 Dimension(L*W*H)

m

15670*1644*1481

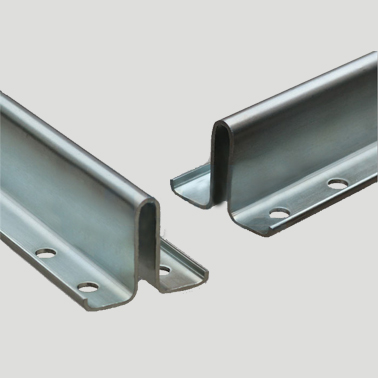

Elevator Guide Rail Roll Form Line  201303271530284027

Why choose Linear Cable Tray Roll Forming Machine?
1. In the design of punching part, we adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm.

1. Rolling stations is 20 steps ,the main machine consists of AC motor,reducer,high precision liner rail, transmission box on left and right, horizontal adjustment system and rolling moulds. The machine base and transmission adopts welding structure , with hardness treatment, the material of roller is 45# steel.

3. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.
