Description:

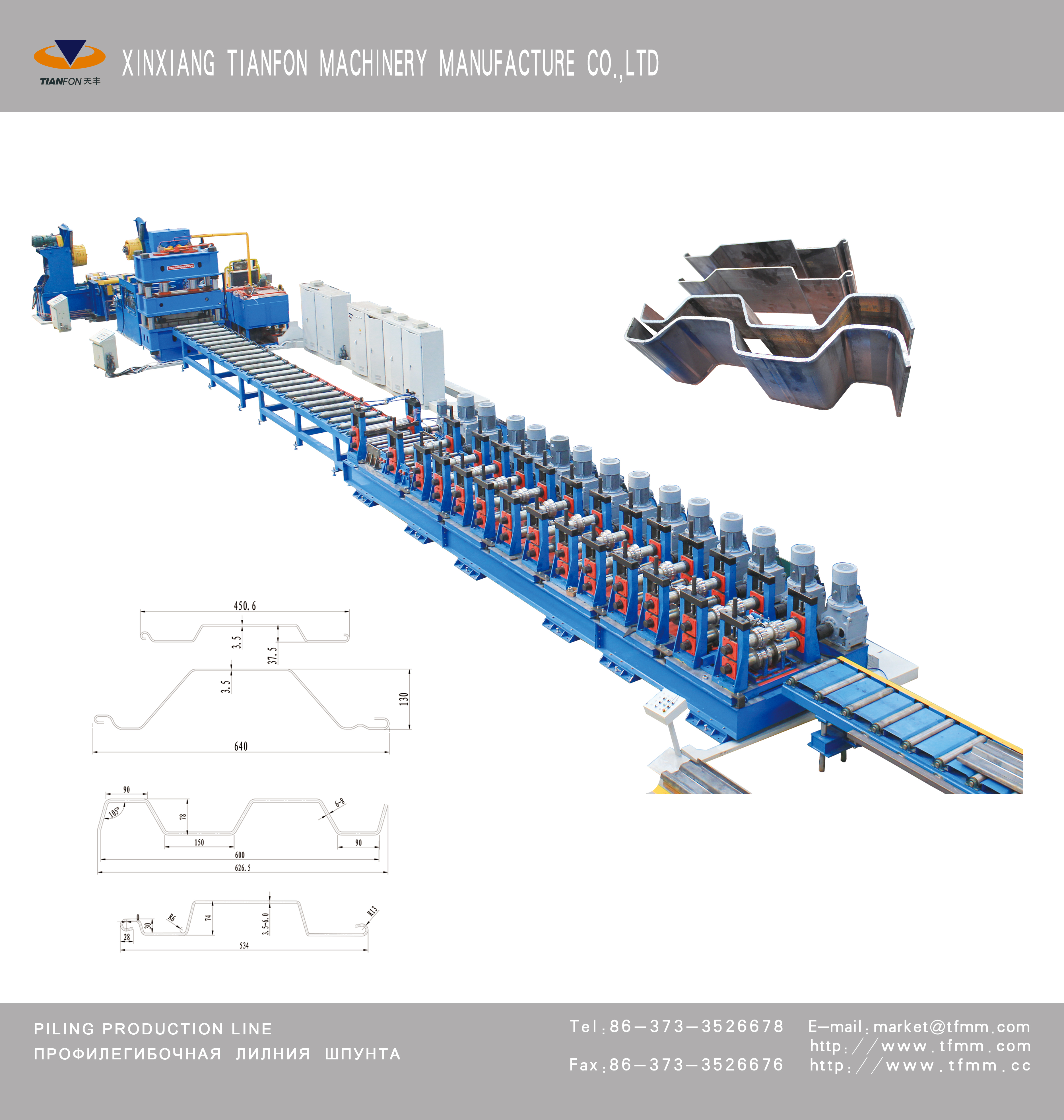

Equipment overview:
TF piling sheet line adopts quick-change cassettes structure, which means one machine can produce 8 profiles, with the advantages of high speed and automation. The max. coil thickness: 8mm The piling sheet is very popular now. In the permanent structures, it is used in the ports, dumps, shore protection wall, retaining wall, breakwater, training dike, dock, flow gate and so on. In the temporary structures, it is used in mountain seals, temporary land expansion, flow break, bridge rail, soil block, water block and sand block when big pipes laying. It is also used in flood fighting.
Main technical parameters: 1. Material: S355JR (hot rolled sheet)
2. Suitable yield strength: σs≤400MPa
3. Coil thickness: 6.0-8.0mm
4. Max. coil width: 1000mm
5. Inner diameter of coil: φ762mm
6. Outer diameter of coil: ≤φ1000~2000mm
7. Coil weight: ≤18T
8. Product length: 2000mm~12000mm
9. Production line speed: 15-20m/min
10. Power: 415V/50HZ, 3 phase 5 wires
11. Total power: about 350KW Production process:
Technical parameters:
| Serial number | Item | Unit | Parameters | Remark |
1 |
Suitable material | Type | | S355JR | |
| strength | MPa | ≤400 | |
| Thickness | mm | 6.0~8.0 | |
| Coil internal diameter | mm | 762 | |
| Coil weight | T | 18 | |
| 2 | Specification | mm | 2000~12000 | |
| 3 | Line speed | m/min | 12--20 | |

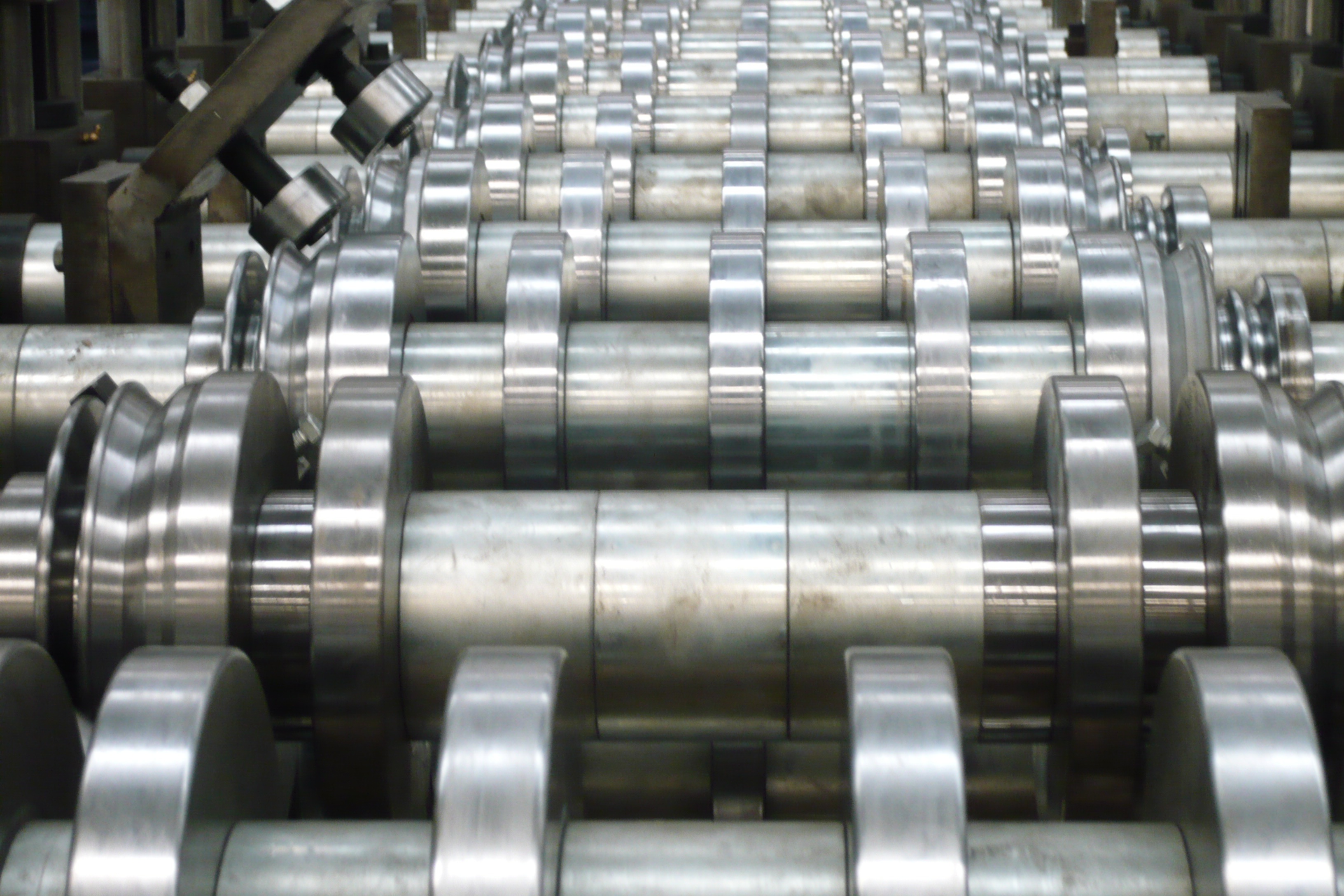

| 4 | Roller material | | | |
| 5 | Roller driven type | | | |
| 6 | Operating system | | | |
| 7 | Total motor power | Kw | ≈350kw | |
| 8 | Electric control system | | PLC automatic control system | |
| 9 | Dimension(L*W*H) | Mm | | |
Looking for ideal Steel Piling Roll Forming Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the
Steel Piling Roll Forming Machine are quality guaranteed. We are China Origin Factory of
Steel Piling Roll Forming Line Equipmnet. If you have any question, please feel free to contact us.
